Description
Standard brass insert. In zinc-plated steel on request.
Useful in specific applications, for example, asynchronous single phase motors.
N.B. Position of inserts and siglatura according to customer’s requirements.
| SPECIFICATIONS |

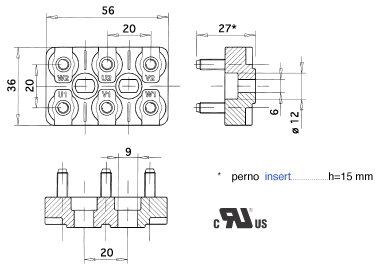

| TECHNICAL DRAWINGS, INSERTS AND SMALL PARTS AND, ON REQUEST, REFERENCE STANDARDS. |
| Insert M5 | Uni 5541-65 / 5542-65 / 4535-64 | |
| Nut M5 | Din 934 = Uni 5588 | |
| Washers M5 | Din 125 = Uni 6592 | |
| Plaques M5 hole-to-hole 20 mm | No Specific standard; for the minimum ticknesses Din 125 is used as the reference standard | |
| Insert torsional stress | 3 N.m | |
| UL certification | File n° E213748 |
| SMALL METAL PARTS KIT |
The kit can be made up according to request and requirements. In all cases the kit can be supplied in one package or separately in individual bags.
