Product Description

Standard brass insert. In zinc-plated steel on request.

Useful for powering auxiliary devices (for example: electromagnetic brake in direct current, assisted servoventilation, bi-metal thermoprotection devices incorporated in motor windings, PTC probes,etc.), for which flying connections are not permitted by the regulations.
N.B. Marking is performed at the customer’s discretion.

SPECIFICATIONS

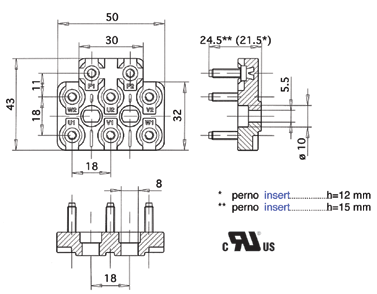

TECHNICAL DRAWINGS, INSERTS AND SMALL PARTS AND, ON REQUEST, REFERENCE STANDARDS.



Insert M4 Uni 5541-65 / 5542-65 / 4535-64
Nut M4 Din 934 = Uni 5588
Washers M4 Din 125 = Uni 6592
Plaques M4 hole-to-hole 18 mm No Specific standard; for the minimum ticknesses Din 125 is used as the reference standard
Insert torsional stress 2 N.m
UL certification File n° E213748
SMALL METAL PARTS KIT

The kit can be made up according to request and requirements. In all cases the kit can be supplied in one package or separately in individual bags.
