| PRODUCTS |
|
|
|
|
 |
|
|
| Terminal Blocks 95x60 6 inserts M8 |
| Standard brass insert. In zinc-plated steel on request. |
 |
|
Useful in specific applications, for example, asynchronous single phase motors. |

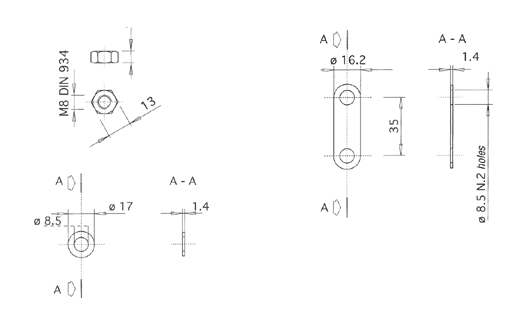

| TECHNICAL DRAWINGS, INSERTS AND SMALL PARTS AND, ON REQUEST, REFERENCE STANDARDS. |
| Insert M8 |
|
Uni 5541-65 / 5542-65 / 4535-64 |
| Nut M8 |
|
Din 934 = Uni 5588 |
| Washers M8 |
|
|
| Plaques M8 hole-to-hole 35 mm |
|
|
| Terminal boards without official UL certification but in any case produced using material recognised by the Underwriters Laboratories in file E111031 |
The kit can be made up according to request and requirements. In all cases the kit can be supplied in one package or separately in individual bags.
|
|
